Content » Vol 53, Issue 6

Original report


Philip Henderson, MBChB1,2, Tara Quasim, MD, MPH, MBChB3, Annette Asher, BSc4, Lucy Campbell, BN4, Malcolm Daniel, MBChB5, Lisa Davey, BSc4, Helen Devine, MSc5, Martyn Gall, MSc4, Pamela MacTavish, MSc5, Karen McGroarty, BSc(Hons)6, Fiona Nolan, Grad Dip Phys4, Colin Purdie, BSc3, Isma Quasim, MBChB4, John Sharp, PhD4, Martin Shaw, PhD, MSci3,7, Theodore J. Iwashyna, MD, PhD8,9 and Joanne McPeake, PhD, MSc, BN(Hons)3,5

From the 1School of Medicine, Dentistry and Nursing, University of Glasgow, 2Academic Unit of Anaesthesia, Pain and Critical Care Medicine, School of Medicine, Dentistry and Nursing, 3School of Medicine, Dentistry and Nursing, University of Glasgow, 4Golden Jubilee National Hospital, Cardiothoracic Critical Care, 5Intensive Care Unit, Glasgow Royal Infirmary, 6Carers’ Centre, 7Clinical Physics, NHS Greater Glasgow and Clyde, Glasgow, UK, 8Center for Clinical Management Research, VA Ann Arbor Health System, Ann Arbor, 9Department of Internal Medicine, Division of Pulmonary and Critical Care, University of Michigan, Ann Arbor, MI, USA


Objectives: To describe the long-term outcomes of cardiac intensive care unit patients and their primary caregivers, and to explore the feasibility of implementing a complex intervention, designed to support problems associated with post-intensive care syndrome and post-intensive care syndrome–family, in the year following discharge from the cardiac intensive care unit.

Design: A complex multidisciplinary rehabilitation programme, delivered as a quality improvement initiative, in a single centre in the West of Scotland. Outcomes were measured using surveys of health related quality of life, self efficacy, anxiety, depression, pain, caregiver strain, and insomnia.

Participants: Patients and their caregivers were invited to participate 12 weeks after hospital discharge. Twenty-seven patients and 23 caregivers attended the programme.

Results: Over 90% of patients had problems in at least one quality of life domain at baseline, 41% of patients had symptoms of anxiety and 22% had symptoms of depression. During the baseline visit, caregiver strain was present in 20% of caregivers, 57% had symptoms of anxiety, and 35% had symptoms of depression. Improvements in outcomes were seen in both patients and caregivers at 1-year follow-up. The programme was implemented, and iterative learning obtained about the content and the operationalization of the service, in order to understand feasibility.

Conclusion: This small-scale quality improvement project has demonstrated that this complex multidisciplinary rehabilitation programme is feasible and has positive implications for patients following discharge from the cardiac intensive care unit, and their caregivers.

Key words: rehabilitation; post-intensive care syndrome; cardiac; quality improvement.

Accepted Mar 16, 2021; Epub ahead of print Apr 15, 2021

J Rehabil Med 2021; 53: jrm00206

Correspondence address: Philip Henderson, Academic Unit of Anaesthesia, Pain & Critical Care Medicine, School of Medicine, Dentistry and Nursing, Level 2, New Lister Building, Glasgow Royal Infirmary, 10-16 Alexandra Parade, Glasgow, G31 2ER, UK. E-mail:

Doi: 10.2340/16501977-2825

Lay Abstract

Patients, and relatives (or caregivers) of patients, treated in specialist intensive care units often only have access to limited recovery programmes focussing on a single disease. For patients treated in general intensive care units a recovery programme called InS:PIRE has been developed. The programme runs over multiple weeks, combining healthcare teams with social and financial help, and involves community organizations. It also brings groups of patients and relatives together so that they can help each other (known as peer support). This study describes the process of adapting the InS:PIRE programme for those treated in a specialist heart and lung centre. The problems these patients and relatives experience in the year after their illness is described, demonstrating that these issues are similar to those experienced after general intensive care. The results show that this model of recovery is possible in this setting and appears to be valued by the participating patients and relatives.


Most patients now survive major cardiac surgery, and survival after cardiac arrest is also increasing (1). The American Heart Association has highlighted that such survivorship can be associated with long-lasting emotional, cognitive, physical, and social problems (2).

Post-intensive care syndrome (PICS) and post-intensive care syndrome–family (PICS-F) are well recognized following general intensive care unit (ICU) care (3). PICS appears to encompass the same spectrum of problems (social, physical, cognitive, and emotional), with similar timelines for partial or complete recovery to those in patients after cardiac events (2, 3). These parallel recovery trajectories are also comparable for family members (4). One of the few documented differences in recovery trajectories, however, may be a more stark dichotomization in the cardiac population. Some patients follow a clear linear improvement over the first year, while others plateau or see a reduction in quality of life (5, 6).

The aims of this study are to describe the long-term outcomes of cardiac intensive care unit (CICU) patients and their primary caregivers; and to explore the feasibility of implementing a complex intervention, designed to support problems associated with PICS and PICS-F, in the year following discharge from the CICU.


Design and setting

The initiative was undertaken in a single CICU in Scotland. The Golden Jubilee National Hospital (GJNH), in Clydebank, is the major centre for national heart and lung services in Scotland, with over 2,000 annual admissions to the CICU per year. The primary patient group admitted to the GJNH are post-operative cardiac surgical patients. However, the CICU also admits patients from the regional revascularization service and the National Heart Failure Service. The multi-disciplinary team (MDT) delivering the initiative worked with a national collaborative to adapt a pre-existing intervention for PICS, with input from previous CICU patients and caregivers. These steps ensured that the intervention implemented was responsive to the challenges of this population.

Intensive Care Syndrome: Promoting Independence and Return to Employment (InS:PIRE), is a 5-week multidisciplinary peer support rehabilitation programme for ICU survivors and their caregivers. Previous research has described InS:PIRE and the initial evaluation of the programme (7, 8). Briefly, InS:PIRE is run on a cohort basis, providing patients and caregivers access to individual sessions with medical and nursing staff, a pharmacist, and physiotherapist, alongside sessions with psychology. Community organizations provide welfare and benefit support; this involves financial, housing, welfare benefit, and social advice. Peer support is encouraged, using shared waiting areas, group sessions, and the involvement of patient and caregiver volunteers further along the recovery trajectory. Peer support has been implemented in a variety of centres internationally to support recovery from critical illness, reduce social isolation, and improve mental health and wellbeing (9). The aim of the programme is to ameliorate the signs and symptoms associated with PICS and PICS-F.

To understand the feasibility of undertaking a complex intervention post-hospital discharge, the MDT implemented 5 pre-planned cohorts of the InS:PIRE program over 20 months. One year follow-up was completed in September 2019. The programme was delivered as a quality improvement (QI) initiative, with a learning session at the end of each cohort. This session formed the function of the plan, study, and act stages of a formal QI project, although staff did not use these terms. At this session, facilitated by a QI coach, staff discussed potential improvements to the programme, based on user feedback and staff experience. The research and development department within the GJNH reviewed the proposal for the project. As this was the implementation of a new service, which was piloted as part of a QI process, ethics approval was waived. However, overall governance, including patient attendance and safety approvals were managed by the research and development department of the GJNH.

This innovation differed distinctly from traditional cardiac rehabilitation services; it did not provide a prescribed programme or service, but, instead, patients were able to access services as needed. Furthermore, the InS:PIRE programme provided social, emotional, and physical rehabilitation services for any presenting complaint, from both the patient and caregiver (see Table SI). Of note, patients could attend both cardiac rehabilitation and the InS:PIRE programme.


Patients were invited to participate in InS:PIRE 12 weeks after hospital discharge (baseline appointment). Further follow-up was in-person at 3 and 12 months after initial attendance. Inclusion criteria for the initiative were: patients who were ventilated for longer than 48 h with a prolonged and/or complicated critical care stay. Exclusion criteria were: patients on an end of life care pathway, and patients with significant, ongoing, brain injuries.

Outcomes and analysis

Data were collected to understand the long-term outcomes of patients and their caregivers. The tools utilized were reviewed by patient groups involved in the initial set-up of InS:PIRE, ensuring the outcomes evaluated were important to service users. These tools, with a brief description of their content and scoring matrix, are shown in Table I. Medication management and medication-related problems (MRPs) were examined throughout the intervention. This process was undertaken by a senior ICU pharmacist; each medicine management intervention delivered to correct any MRP was independently reviewed by 2 external clinicians and categorized using the scoring scheme shown in Table SII. All data analysis for this project was undertaken using Microsoft Excel.

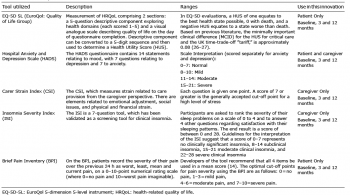

Table I. Summary of outcome measures utilized


Baseline characteristics and attendance

During the study period InS:PIRE was delivered in 5 cohorts, 113 patients were invited to attend the clinic, 27 (24%) patients and 23 caregivers attended. Only one patient did not complete the programme (due to a hospital readmission unrelated to InS:PIRE attendance) thus the completion rate was 96%. Of the patients who attended, 18 were male (67%) and the median age was 66 years (interquartile range (IQR) 61–75 years). Planned admissions represented 56% of those attending. Further details of admission characteristics are shown in Table II. Of the caregivers, 17 (74%) were spouses, 3 (13%) were children, and 3 (13%) had other relationships. Median time to first clinic attendance was 20 weeks (IQR 14–25 weeks) post-CICU discharge.

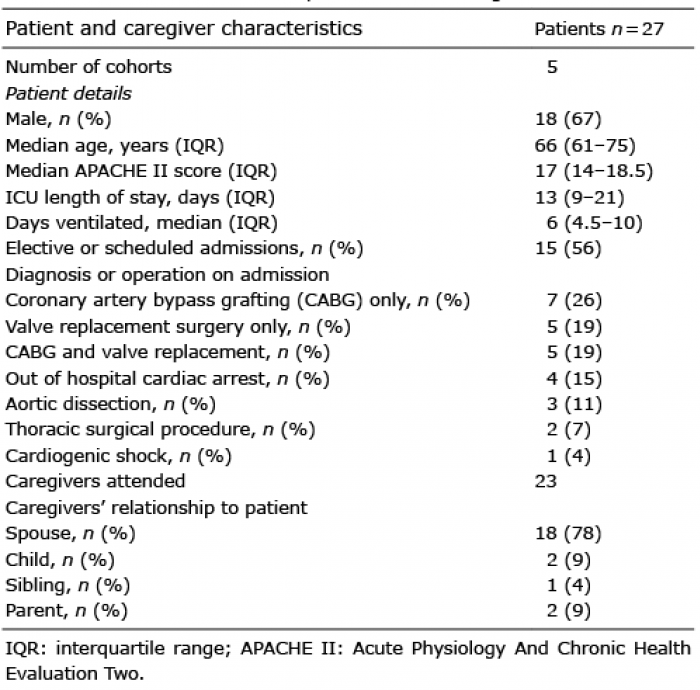

Table II. Characteristics of patients and caregivers

Feasibility, quality improvement, and learning

Important developments and the key iterative changes planned and completed during the learning sessions are summarized in Table III. The high rates of programme completion were indicative of high patient tolerability, and this was confirmed by the informal feedback discussed during the programme and disseminated between staff during the learning sessions. Similarly, no patient or caregiver was observed or reported to come to any harm, or develop problems caused by the intervention.

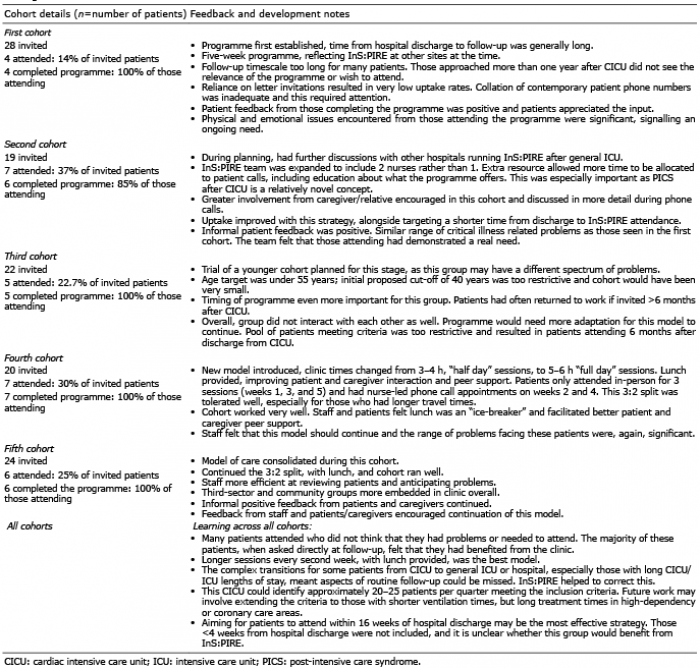

Table III. Intensive Care Syndrome:Promoting Independence and Return to Employment (InS:PIRE) development and patient attendance through the 5 cohorts

The primary issue was the uptake rate. Initial 14% uptake rates were improved to between 25% and 30% following some changes in procedure. The first change was to utilize phone calls to invite patients to participate in InS:PIRE, rather than simply sending letters. This also allowed the team to give more details on the purpose of InS:PIRE and what to expect from the clinic. The geographical spread of this national service also contributed to reduced attendance. In order to improve both attendance and patient and caregiver support, the MDT changed the timetable to a 3-week programme, delivered over 5 calendar weeks, with phone call appointments on weeks of non-attendance. The in-person sessions were each longer, thus increasing the time spent in clinic resulting in increased attendance from patients with the furthest to travel. Another and more profound benefit from the longer sessions was the more intense interaction resulting in improved peer support.

Previous research has found that locating a physical space to host rehabilitation programmes can be a challenge; the current innovation was no different (13). However, having the clinic on-site appeared beneficial for several reasons, including: the ability to quickly access other clinicians to enquire about ongoing care (especially in relation to ongoing medicine management); access to patient records; access to ongoing care if needed; and access to the ICU to allow participants to visit, if they requested. Facilitating visits to the ICU appeared to be beneficial for patients, caregivers, and staff alike, and it offered staff the opportunity to understand the recovery trajectory more fully.

The psychology input also evolved. Initially, psychology was delivered as one session with patients and caregivers together. This quickly changed to separate sessions, in order to facilitate more open discussion with each group about their psychological and emotional challenges during and after critical illness. Specifically, caregivers could be more open about lived experiences, and both groups benefited from greater patient independence, as some caregivers had not left the patient’s side since they were discharged from hospital. This was replicated within the physiotherapy session; the physiotherapist could undertake a more accurate assessment of patient need and functionality when the patient had to carry out activities independently.

Outcome measures

A total of 14/27 (53%) patients and 13/23 (57%) caregivers completed outcome measures at one year. Health-related quality of life, measured using the EuroQol Visual Analogue Scale (EQ-VAS), demonstrated a mean score of 70/100 (standard deviation (SD) 18) at initial InS:PIRE attendance (baseline) and increased to 78/100 (SD 16) by one year (Table IV) (10). The proportion of patients with problems in at least one domain of EQ-5D-5L decreased from 92% at baseline to 73% at 1-year, while those with severe problems in any domain of the EQ-5D-5L, was 22% at baseline and 18% at one year. Defining depression and anxiety as a Hospital Anxiety and Depression Scale (HADS) >7 at baseline, 41% of patients had symptoms of anxiety, with 26% of this group having “severe”’ symptoms (HADS >9) (11). In this cohort 22% of patients had symptoms of depression (Fig. 1). The Brief Pain Inventory identified 14 patients (52%) with ongoing pain at baseline (12).

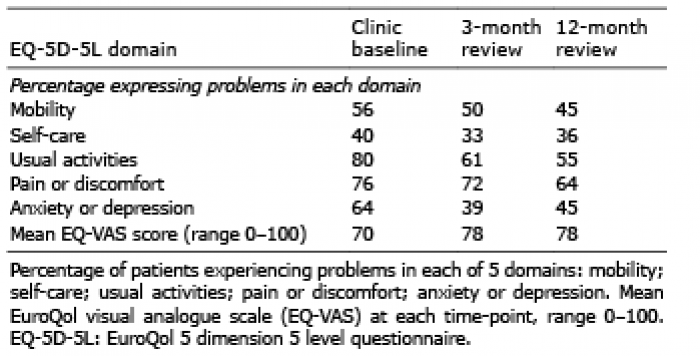

Table IV. Breakdown of EuroQol 5 dimension 5-level questionnaire (EuroQol 5-level) version domains

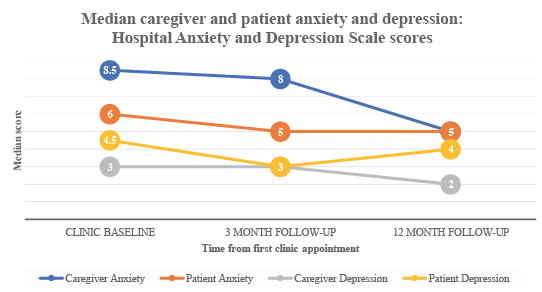

Fig. 1. Median Hospital Anxiety and Depression Scale (HADS) scores for patients and caregivers at first clinic attendance (baseline), 3 months, and 12 months after initial attendance. Numbers completing HADS surveys at each time-point are: clinic baseline, 24 patients, 20 caregivers; 3-month follow-up, 20 patients, 16 caregivers; 12-month follow-up, 17 patients, 13 caregivers.

During the baseline InS:PIRE visit, caregiver strain, defined via the Carer Strain Index was present in 20% of caregivers, with the need to alter personal plans (35%) the most common reason for this strain (13). Eleven caregivers (48%) had symptoms of anxiety and 6 (26%) had symptoms of depression. Interestingly, caregiver anxiety exceeded that of patients at baseline, reaching similar levels at 12 months (Fig. 1). Utilizing the Insomnia Severity Index (ISI), 77% of caregivers expressed problems with sleep (14).

All 27 patients were reviewed by the pharmacist; 56% of patients had a medication-related problem. Of the 32 individual MRPs identified, 27 were deemed clinically significant (≥ grade 2, see Table S21). Most problems were related to cardiovascular drugs (70%), of which 24% were related to antiplatelet or anticoagulation medications. When reviewing the problems, most were related to the absence of a clear management plan across transitions of care.


This single-centre QI project found that patients and caregivers who received care in the CICU have problems consistent with those described in the post-intensive care literature. Furthermore, this study shows that the implementation of a multi-faceted programme to support these issues is feasible and safe in the clinical environment and appears to improve important outcomes for patients and caregivers.

Previous work has estimated the incidence of PICS as 56% at one year after discharge in the general ICU population (15). The current programme of work describes similar physical and emotional challenges to that population (4, 7, 15). What is particularly notable about these results is that caregivers seemed to have equally troubling issues, such as anxiety and insomnia. Given that informal support is often delivered by close family members in the post-ICU recovery period, underpinning formal rehabilitation, more work is urgently required into how best to support caregivers both during and after the critical care stay. The core components of the programme in this context appear to be peer support, social care provision, and timely MDT follow-up to ensure patient safety and optimal recovery. Consistent with previous evidence related to PICS, access to social support was crucial, particularly in relation to welfare advice (16). This advice provided reactive, as well as preventative, care. For example, social care services offered access to fall alarms and signposted patients to community organizations, such as addiction services. In terms of transferability, these components can be offered by different services, depending on the geographical context, and in different formats, but should make up part of any service. A further mechanism by which InS:PIRE appeared to improve patient care was through taking a holistic, patient-centred approach that allowed important aspects of health and social care to be integrated with important aspects of case management. Other services and outpatient clinics, including cardiac rehabilitation, often centre on an organ or system (17). This complex intervention focuses on what makes the patient healthy in relation to physical, emotional and social health needs, rather than the delivery of specific healthcare interventions.

Although this single-centre QI project describes important learning, it has some limitations. Firstly, the study was performed in one geographical context with one specific team. As such, the intervention may not be appropriate or feasible in other contexts. Secondly, the study describes the problems of patients and caregivers, and the learning from the implementation of this QI initiative. However, the effectiveness of this intervention was not analysed; hence, more research is required in this area. Finally, the study describes mental health outcomes for participants, but no information on pre-CICU mental health status was included; hence, the problems described may not be directly associated with recovery following critical illness.


This evaluation has shown that emotional and physical problems are prevalent in the months following discharge from the CICU. The purpose of this evaluation was not to measure the effectiveness of the interventions; its primary goal was to understand whether this model of care could be adopted and implemented for the CICU population. This small-scale QI project has demonstrated that this programme is feasible and has positive implications for patients and caregivers.

Funding. This research was funded by The Health Foundation, which is a charitable organization. They had no role in the design, collection, analysis, interpretation of data or in the writing of this manuscript. They had no role in the decision to submit the manuscript for publication. Theodore J. Iwashyna is supported, in part, by the US Department of Veterans Affairs, Health Services Research & Development. This study does not necessarily represent the official views of the US Government or Department of Veterans Affairs. Joanne McPeake is in receipt of a THIS.Institute (University of Cambridge) Fellowship (PD-2019-02-16).

The authors have no conflicts of interest to declare.

1. Daya MR, Schmicker RH, Zive DM, Rea TD, Nichol G, Buick JE, et al. Out-of-hospital cardiac arrest survival improving over time: results from the Resuscitation Outcomes Consortium (ROC). Resuscitation 2015; 91: 108-115.

2. Sawyer KN, Camp-Rogers TR, Kotini-Shah P, Del Rios M, Gossip MR, Moitra VK, et al. Sudden cardiac arrest survivorship: a scientific statement from the American Heart Association. Circulation 2020; 141: e654-e685.

3. Mikkelsen ME, Still M, Anderson BJ, Bienvenu OJ, Brodsky MB, Brummel N, et al. Society of Critical Care Medicine's International Consensus Conference on Prediction and Identification of Long-Term Impairments After Critical Illness. Crit Care Med 2020; 48: 1670-1679.

4. Haines KJ, Quasim T, McPeake J. Family and support networks following critical illness. Crit Care Clin 2018; 34: 609-623.

5. Le Grande MR, Elliott PC, Murphy BM, Worcester MU, Higgins RO, Ernest CS, et al. Health related quality of life trajectories and predictors following coronary artery bypass surgery. Health Qual Life Outcomes 2006; 4: 49.

6. Thomson P, Niven CA, Peck DF, Eaves J. Patients' and partners' health-related quality of life before and 4 months after coronary artery bypass grafting surgery. BMC Nursing 2013; 12: 16.

7. Devine H, Quasim T, McPeake J, Shaw M, McCallum L, Mactavish P. Chronic pain in intensive care unit survivors: incidence, characteristics and side-effects up to one-year post-discharge. J Rehabil Med 2019; 51: 451-455.

8. McPeake J, Iwashyna TJ, Devine H, MacTavish P, Quasim TJT. Peer support to improve recovery following critical care discharge: a case-based discussion. Thorax 2017; 72: 856-858.

9. McPeake J, Hirshberg EL, Christie LM, Drumright K, Haines K, Hough CL, et al. Models of peer support to remediate post-intensive care syndrome: a report developed by the Society of Critical Care Medicine Thrive International Peer Support Collaborative. Crit Care Med 2019; 47: e21-e27.

10. Oppe M, Devlin NJ, Szende A. EQ-5D value sets: inventory, comparative review and user guide. Dordrecht: Springer; 2007.

11. Zigmond AS, Snaith RP. The Hospital Anxiety and Depression Scale. Acta Psychiatr Scand 1983; 67: 361-370.

12. Cleeland CS. The Brief Pain Inventory user guide. Houston, TX: The University of Texas MD Anderson Cancer Center; 2009, p. 1-11.

13. Robinson BC. Validation of a caregiver strain index. J Gerontol 1983; 38: 344-348.

14. Bastien CH, Vallières A, Morin CM. Validation of the Insomnia Severity Index as an outcome measure for insomnia research. Sleep Med 2001; 2: 297-307.

15. Marra A, Pandharipande PP, Girard TD, Patel MB, Hughes CG, Jackson JC, et al. Co-occurrence of post-intensive care syndrome problems among 406 survivors of critical illness. Critical Care Med 2018; 46: 1393.

16. Hauschildt KE, Seigworth C, Kamphuis LA, Hough CL, Moss M, McPeake JM, et al. Financial toxicity after acute respiratory distress syndrome: a National Qualitative Cohort Study. Critical Care Med 2020; 48: 1103-1110.

17. Cowie A, Buckley J, Doherty P, Furze G, Hayward J, Hinton S, et al. Standards and core components for cardiovascular disease prevention and rehabilitation. Heart 2019; 105: 510-515.
