1Department of Medical Sciences, Dermatology and Venereology, Uppsala University Hospital, Uppsala, Sweden, 2Departments of Dermatology, University of Helsinki, Helsinki, Finland, and 3Karolinska Institute at Stockholm Söder Hospital, Stockholm, Sweden

Drug screening procedures should preferably utilize experimental settings mimicking the in vivo situation. The aim of this study was to evaluate a skin explant model as a tool to identify topical agents with anti-proliferative properties in human epidermis. Re-epithelialization was initiated from a skin punch biopsy explanted onto de-epidermized dermis and cultured at the air–liquid interface in the presence of the epidermal growth factor receptor kinase inhibitor PKI166, tacrolimus or established topical anti-psoriatic drugs: betamethasone, calcipotriol, dithranol and tazarotene. Neo-epidermal extension was traced by fluorescence microscopy prior to histomorphometric analysis. PKI166 at 1 µM decreased the mean radial outgrowth rate (–19%), frequency of BrdU-positive (–37%) and laminin 5-positive (–45%) cells, indicating reduced proliferation and migration of neo-epidermal keratinocytes. However, the papillomatosis index and epithelial thickness were not significantly affected. Calcipotriol at 1 µM had a similar effect on the outgrowth rate (–15%) and fraction of laminin 5-stained keratinocytes (–40%). Furthermore, calcipotriol significantly reduced mean neo-epidermal thickness. Equimolar concentrations of the other test compounds had no apparent effect on histology or outgrowth parameters. This study exemplifies the versatility of combined dynamic and morphological analysis and emphasizes the potential of epidermal growth factor receptor-directed inhibition in hyperproliferative disorders of the epidermis. Key words: epidermal growth factor; tyrosine kinase inhibitors; proliferation; epidermis; fluorescent tracer.

(Accepted January 12, 2006.)

Acta Derm Venereol 2006; 86: 292–299.

Ola Rollman, MD, PhD, Department of Medical Sciences, Dermatology and Venereology, University Hospital, SE-751 85 Uppsala, Sweden. E-mail: ola.rollman@medsci.uu.se

In vitro assessment of dermatological drugs generally uses cell assays. However, since multilayered and differentiated epithelium is easy to establish and mimics native tissue better than monolayer cultures do, human epidermis equivalents are generally advocated in skin biology and toxicology research (reviewed in ref. 1). The dermis-based skin explant model represents one such in vitro technique, supporting radial outgrowth of a solely keratinocyte-containing neo-epidermis on a matrix of cell-free human dermis (2, 3). To visualize the process of re-surfacing without harming the tissue in culture, the model was recently complemented with successive fluoroprobing steps (4). Here, this imaging technique was utilized to co-investigate dynamic and morphological effects of topical anti-psoriatic drugs and other growth-inhibitory agents on neo-epidermis in culture.

MATERIALS AND METHODS

Test compounds

Stock solutions (0.1, 1, 10 mM) of betamethasone (Sigma-Aldrich, St Louis, MO, USA), calcipotriol (LeoPharma, Ballerup, Denmark), dithranol (Sigma-Aldrich), PKI166 (Novartis, Basel, Switzerland), tacrolimus (Fujisawa Pharmaceuticals, Osaka, Japan) and tazarotene (Allergan, Irvine, CA,USA) were prepared in 99.5% ethanol.

Skin explant culture

Normal human skin explants (superficial 2-mm punch biopsies) were fibrin-glued onto cell-free de-epidermized dermis (DED; 10-mm diameter) (3, 5) and cultured as described previously in detail (4). Explants were prepared from reduction mammoplasty skin stored at 4°C for less than 48 h. Two explanted DEDs were placed on a modified cell strainer (70 µm, Falcon, BD Biosciences, Bedford, MA, USA) in each well of a 6-well culture plate and grown at the air–liquid interface (Fig. 1a–b) in an atmosphere of 5% CO2/air at 37°C. The culture medium comprised Dulbecco’s Modified Eagle’s Medium:Ham’s F12 medium (3:1), 10% foetal bovine serum, 100 µg/ml streptomycin, 100 U/ml penicillin, non-essential amino acids (all Gibco, Paisley, Scotland, UK), 5 µg/ml insulin (Lilly, Solna, Sweden), 0.18 mM adenine, 0.5 µg/ml hydrocortisone, 10–10 M cholera enterotoxin, 10 ng/ml epidermal growth factor (all Sigma-Aldrich) and a test compound or vehicle (ethanol, final concentration 0.01%). Medium was renewed after 72 h and then at 24-h intervals throughout the culture period. Three experimental series were performed with quadruplicates of explanted DEDs exposed to each test compound at specified concentrations. Each series included explants and DEDs, respectively, from a common donor. Proliferative cells (entering S-phase) were labelled by incubation with 30 µM bromodeoxyuridine (BrdU, Roche Diagnostics, Mannheim, Germany) 4 h prior to harvest (4). As positive control for apoptosis, cultures were exposed to 1 µM staurosporine (Sigma-Aldrich) during the final 24 h of culture (6). The study was approved by the local ethics committee at Uppsala University.

Visualization and outgrowth measurement

Neo-epidermal surface area was traced before medium renewals by fluorescence imaging of re-epithelialization (FIRE) technique (4) using fluorescein diacetate (FDA, Sigma-Aldrich) as indicator of live cells (7). Epidermal outgrowth (total fluorescent area minus explant area, Fig. 2, insert) was determined daily by image analysis while maintaining the tissue in culture and quantified using DP-soft image analysis programme (Olympus, Hamburg, Germany).

Histology and immunostaining

Cultures were harvested on day 9 and fixed in 4% neutral-buffered formaldehyde before embedding in paraffin. De-paraffinized cross-sections (5 µm) were stained with haematoxylin-eosin and evaluated for gross morphology, neo-epidermal thickness (total area of viable neo-epidermis/horizontal length of neo-epidermis) and papillomatosis index (length of neo-epidermis basement membrane zone (BMZ)/horizontal length of neo-epidermis) (4). BrdU-immunostaining was conducted as described and proliferative cell density was defined as the number of BrdU-reactive cells per mm length of the BMZ (4). Histometry and BrdU-density were analysed in duplicate sections from two (series 1–2) or four (series 3) samples of each treatment group using Leica Q500 image analysis software. For type IV collagen detection, sections were pre-treated for 20 min in 95°C Target Retrieval Solution (S1699, DakoCytomation, Glostrup, Denmark) to improve staining results, and incubated for 30 min at room temperature with primary antibody (1:25 dilution, clone CIV 22, DakoCytomation) (8). Laminin 5-producing cells were identified with antibodies (1:1700) against the γ-2 chain (9, 10). Sections were pre-treated with 1% trypsin for 30 min at 37°C. StreptABComplex/HRP Duet mouse/rabbit (DakoCytomation) kit was used for visualization of collagen IV and laminin 5. The number of laminin 5-positive cells was determined in a blinded manner within the outermost (1.2 mm) neo-epidermal front (day 9) in duplicate sections from two (series 1–2) or four (series 3) samples per group. Apoptotic cells were immunostained for cleaved caspase-3 (1:200, Cell Signaling Technology, Danvers, MA, USA) according to the manufacturer’s instructions. For antigen unmasking, slides were brought to boiling in 1 mM EDTA pH 8.0 and maintained at sub-boiling temperature for 15 min in a microwave. PBS/0.1% Tween-20 was used as wash buffer. Biotinylated anti-rabbit secondary antibody (1:200, Vector Laboratories, Burlingame, CA,USA) was detected with ABC technique. Diaminobenzidine (DAB, Vector Laboratories) was used as chromogenic substrate. Slides were counterstained with haematoxylin and mounted in glycerol jelly. The density of caspase-3-positive cells in neo-epidermis (day 9) was assessed in a blinded manner in duplicate sections from four samples per group in series 3; (–): 0–3 positive (pos) cells/mm neo-epidermis, (+): 4–50 pos cells/mm, (++): > 50 pos cells/mm. All immunohistochemical staining procedures were performed for the 1-µM groups only and included negative controls omitting the primary antibody.

Statistical analysis

To test statistical differences in radial growth rates between drug- and vehicle-exposed samples, individual growth rates were estimated from serial area measurements by a mixed effects model (11). In this model, the factors: treatment, experimental series and interaction between treatment and series were included as fixed effects. The intra-sample correlation was accounted for by allowing individual intercepts for the samples as random effects. The model ignores deviation in linearity and estimates radial progression over day 3–9, regardless of when curve linearity occurs. Since both intra-experimental and intra-sample correlations were considered and the deviant samples were few, the model was regarded as appropriate for our calculations. Analyses were performed with SAS version 8.02 (SAS Institute Inc., Cary, NC, USA). Absolute differences of means in BrdU-density, laminin 5-positive cells and histometric values between drug- and vehicle-exposed groups were calculated for each experimental series and analysed statistically by paired t-test using SPSS version 12.01 (SPSS Inc., Chicago, IL, USA).

RESULTS

Morphology

The neo-epidermis formed in the presence of either test compound was multilayered, containing the microscopic layers typical of native human epidermis attached to a BMZ expressing type IV collagen (Fig. 1c–d). The epithelium was somewhat thicker (8–10 viable cell layers) with a prominent orthokeratotic stratum corneum nearby the explant, compared with the advancing edge. In general, the keratinocytes had more frequent mitotic figures and were less polarized than in natural skin. A few keratinocytes displayed dyskeratosis or intracellular vacuoles and the horny layer contained occasional parakeratotic cells. Overall, the granular layer was somewhat thinner or less regular than that seen in vivo. Neo-epidermis grown in presence of calcipotriol (1 µM) contained slightly larger nuclei and nucleoli, whereas the opposite was observed in cultures exposed to tazarotene. Otherwise, no drug-related alterations in tissue architecture or histological signs of toxicity were observed.

Re-epithelialization

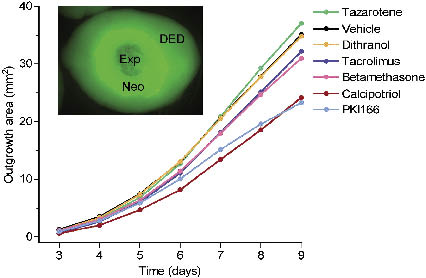

Fluorescence imaging of skin cultures by FIRE technique revealed that re-epithelialization of the DED was visible on day 3 or 4 and increased continuously until the peripheral edge of the DED was reached (Fig. 2). The outgrowth curves for tazarotene, dithranol, tacrolimus and betamethasone (all 1 µM) were close to vehicle whereas cultures exposed to PKI166 and calcipotriol produced smaller outgrowth areas. The radial outgrowth rates were approximately linear for all compounds tested (calculated for days 3–9), although occasional growth curves levelled off or declined shortly before culture termination (Fig. 3). In a few instances, this resulted from rapidly growing segments of neo-epithelium passing the edge of the DED, thus escaping detection by microscopy on day 8 or 9. In general, however, neo-epidermis expanded in a concentric fashion around the explant.

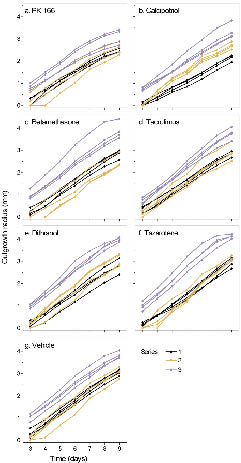

Although the starting points (i.e. intercepts) for individual specimens differed slightly, the growth rates (given by the slope of the growth curves) were consistent both intra- and inter-experimentally (Fig. 3). The radial growth rate of samples cultured with PKI166 or calcipotriol at different concentrations (10 nM, 100 nM and 1 µM) seemed to be dose-dependent. As expected, markedly growth inhibitory effects relative to control cultures occurred at the highest drug concentration (Table I). PKI166 and calcipotriol at 1 µM concentration reduced the rates of dermal re-surfacing (means: 393 and 411 µm/day, respectively) significantly compared to vehicle-exposed explants (mean 485 µm/day, p<0.0001). In addition, 1 µM betamethasone slightly inhibited neo-epidermal growth, whereas tazarotene at 1 µM promoted epidermal growth. Since dithranol is poorly soluble in ethanol, a control experiment was made using dimethyl sulphoxide as alternative vehicle. However, the same results were obtained with either solvent (data not shown).

Proliferation and histomorphometry

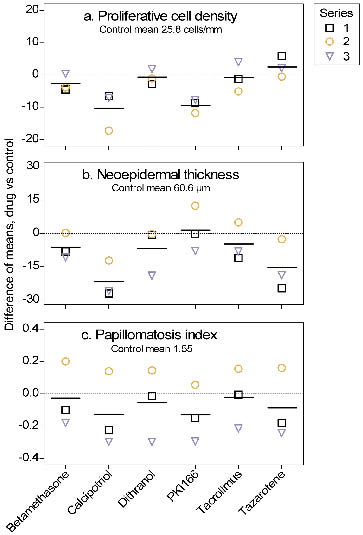

To evaluate any anti-proliferative effects on neo- epidermal keratinocytes, the specimens were examined by BrdU-incorporation assay. Furthermore, neo-epidermal thickness, papillomatosis index and gross morphology were assessed. As shown in Fig. 4a, over the three series, the mean proliferative cell density was reduced in neo-epidermis grown in presence of 1 µM PKI166 (16.3 BrdU-positive cells/mm basal membrane) compared to vehicle (25.8, p=0.016). No other drug affected the proliferative cell density significantly. Although calcipotriol seemed to reduce the mean BrdU-labelling density (15.5), the effect was statistically insignificant due to high variability (p=0.099). Mean neo-epidermal thickness was reduced in cultures with calcipotriol (38.8 µm), compared to vehicle (60.6 µm, p=0.045). The other test compounds, including PKI166, did not significantly affect epithelial thickness (Fig. 4b). None of the drugs altered the papillomatosis index of neo-epidermis (Fig. 4c).

Migration

Cytoplasmic laminin 5 was used as indicator of migrating keratinocytes (12) in the groups with small (PKI166 and calcipotriol) and large (vehicle and tazarotene) outgrowth areas (see Fig. 2). The number of keratinocytes displaying strong laminin 5 immunostaining correlated well with the length of neo-epidermis, since both PKI166 and calcipotriol reduced the amount of positive cells, whereas tazarotene did not. Compared to the vehicle (100%), the number of laminin 5-positive cells was 55% (p=0.040) in the PKI166 group, 60% (p=0.046) in the calcipotriol group and 103% (p>0.05) in the tazarotene group (Fig. 5). The clear staining of extracellular laminin 5 (Fig. 5, arrowheads) and type IV collagen (Fig. 1d, arrowheads) along the papillary surface of the DED indicates that these basement membrane components are well preserved.

Apoptosis

To evaluate signs of apoptosis, paraffin-embedded tissue was sectioned and immunostained for cleaved caspase-3. Staurosporine-exposed (1 µM, 24 h) tissue served as positive control. Staurosporine generated a high proportion of cleaved caspase-3-positive keratinocytes (92 positive cells/mm), whereas all samples exposed to test drugs were immuno-negative or contained very few caspase-3-positive cells (0–3 cells/mm), as exemplified in Fig. 6 (see also Table II).

DISCUSSION

Pre-clinical evaluation of topical drugs in vitro is traditionally based on cell or skin explant cultures attached to plastic that supports growth of keratinocytes or fibroblasts in monolayer. Despite a continuing trend towards complex skin reconstructs, simple in vitro models without all native constituents may still be appropriate, e.g. when studying direct drug responses in selected cells or tissue compartments. In this study, skin explants were adhered onto acellular DED and cultured on rafts to encourage formation of in vivo-like epidermis. Human skin biopsies served as source of regenerating keratinocytes, whereas dermal fibroblasts diminished in number and were eventually encapsulated due to epibolia. Likewise, Langerhan’s cells and melanocytes disappeared during culturing, probably due to unfavourable medium conditions (4). Thus, an expanding disc of multilayered keratinocytes was generated, allowing pharmacodynamic studies of re-epithelialization. Modified versions of the DED-based explant model have emerged to elucidate different aspects of epidermalization, e.g. DEDs with denuded BMZ may be prepared to obtain a more ulcer-like substrate (13), or cultured fibroblasts may be incorporated to study dermal-epidermal cell interactions (14, 15). Since our ambition was to study keratinocyte-directed drug effects on epithelialization under non-ulcer conditions, we chose cell-free, but otherwise intact human dermis as substrate. The DED has preserved basement membrane components, as shown previously (16, 17) and confirmed by distinctive linear immunostainings of collagen type IV and laminin 5. Collagen IV is a major component of lamina densa, whereas laminin 5 associates with lamina lucida of the BMZ and facilitates migration of epidermal cells (18, 19).

The course of re-epithelialization was studied under influence of drugs used in management of psoriasis, dithranol (20) and betamethasone (21), representing the two first generations of anti-psoriatic remedies (22). From third-generation drugs, three examples were included: calcipotriol, a potent vitamin D3 analogue (23); tacrolimus, a calcineurin inhibitor mainly used in atopic eczema (24); and tazarotene, a receptor-specific retinoid (25). Although these drugs affect diverse processes and cell types of the skin, they all have more or less anti-proliferative activity on epidermal cells (26–30). The established drugs were compared with a more recent anti-proliferative substance, PKI166, an epidermal growth factor receptor (EGFR) tyrosine kinase inhibitor, not yet launched as drug for clinical application in dermatology (31, 32). In the present study, only PKI166 and calcipotriol displayed marked inhibitory effects on radial outgrowth rates.

Morphologically, the overall architecture of neo-epidermis was characterized by a mixture of proliferative and differentiating features as a consequence of both mitogenic (EGF, insulin) and differentiating (serum, air) stimuli. The general histological pattern, resembling that of hyperproliferative epidermis, was not affected by drug exposure. However, calcipotriol reduced the average thickness of viable neo-epidermis and the keratinocytes displayed slight increments of their nuclei and nucleoli. The significance of the latter finding is unclear, but a previous report claimed that keratinocytes exposed to 1 µM calcipotriol had enlarged nuclei (28). No obvious signs of neo-epidermal toxicity, such as single cell necrosis, were found in our samples, but we did not assay highly sensitive markers of drug cytotoxicity.

Since re-epithelialization is a result of closely associated cellular activities, we tried to relate drug effects to apoptosis, proliferation and migration in neo-epidermal cells (summarised in Table II). Apoptosis was unlikely as an outgrowth-reducing factor for PKI166 and calcipotriol since neither drug was associated with cleaved caspase-3 expressing keratinocytes. By contrast, PKI166 clearly reduced the density of cycling keratinocytes in neo-epidermis, whereas calcipotriol did not. This was an unexpected finding since topical application of calcipotriol – albeit at 10 to 100-fold drug concentration – is known to markedly inhibit keratinocyte proliferation in lesional psoriatic epidermis (33, 34). To investigate a possible correlation between neo-epidermal outgrowth and cell migration, laminin 5 immunostainings were performed. Cytoplasmic staining for laminin 5 reflects active synthesis of this protein and is usually encountered in migrating keratinocytes of suction blisters and acute wound edges (12, 35). We selected four sample groups to judge laminin 5 as a migration marker: PKI166 and calcipotriol (representing small outgrowths), tazarotene (representing large outgrowths) and vehicle (control). As expected, the length of the neo-epidermal tongue by day 9 strongly correlated with the frequency of laminin 5-positive cells. Both PKI166 and calcipotriol reduced the number of laminin 5-positive cells significantly, supporting the idea that inhibition of re-epithelialization by these drugs is linked to anti-mitotic effects and/or reduced migration of keratinocytes. Tazarotene, which had minor stimulatory effects on neo-epidermal outgrowth, did not differ from vehicle-exposed cultures in terms of intracellular laminin 5 staining.

Selective inhibition of EGFR tyrosine kinase with PKI166 strongly affected re-epithelialization. EGFR (HER-1, ErbB1) is the prototypic member of the EGFR family of receptor tyrosine kinases and widely distributed in epithelial tissues. Epidermal keratinocytes express both the receptor and several of its ligands, including transforming growth factor-a, amphiregulin and heparin binding-EGF (HB-EGF). Signalling through EGFR regulates essential processes in epithelia, e.g. by promoting cell proliferation and migration, regulating differentiation and preventing apoptosis (36–38). In normal adult skin, EGFR is mainly expressed by keratinocytes within the basal compartment of the epidermis (39). Squamous cell carcinomas and psoriatic plaques over-express EGFR (40–42) and a putative role for EGFR in psoriasis hyperplasia has been suggested (43–45). High expression of EGFR and HER-2 (ErbB2) has also been observed in a variety of solid tumours (46). Accordingly, selective tyrosine kinase inhibitors and receptor antibodies directed against members of the EGFR family have been developed as cancer drugs (31, 32, 46, 47). Like many other low molecular weight EGFR inhibitors, PKI166 interacts with the intracellular ATP-binding site of the receptor, thus inhibiting autophosphorylation and downstream EGFR signalling (32). In phase I clinical trials, oral administration of PKI166 resulted in unexpectedly high liver toxicity and the drug was therefore stopped from further development (31). In our study, where PKI166 was selected as model compound for EGFR/HER-2 inhibition of epidermis in vitro, the drug efficiently inhibited regeneration of neo-epidermis. This agrees with the general anti-proliferative response to EGFR inhibition in keratinocytes in monolayer culture (45, 48–50) and skin transplant models in mice (43). Better insight into the pathobiology of skin diseases, and advancements in in vitro modelling, will help to identify therapeutic targets among EGFR family members and other receptor tyrosine kinases in hyperproliferative epidermal disorders.

ACKNOWLEDGEMENTS

We thank Lisa Wernroth and Johan Lindbäck at Uppsala Clinical Research Centre (UCR) for providing expert statistical assistance and Alli Tallqvist for skilful technical assistance with collagen IV and laminin 5 stainings. The Department of Plastic Surgery, University Hospital, Uppsala, is acknowledged for supplying us with skin samples. This study was supported by the Finsen Welander Foundation, the Swedish Psoriasis Association, the Academy of Finland (U S-K), the Sigrid Juselius Foundation (U S-K) and Helsinki University Central Hospital Research Funds (TYH 3260) (U S-K).

REFERENCES

1. Netzlaff F, Lehr CM, Wertz PW, Schaefer UF. The human epidermis models EpiSkin®, SkinEthic® and EpiDerm®: An evaluation of morphology and their suitability for testing phototoxicity, irritancy, corrosivity, and substance transport. Eur J Pharm Biopharm 2005; 60: 167–178.

2. Coulomb B, Saiag P, Bell E, Breitburd F, Lebreton C, Heslan M, et al. A new method for studying epidermalization in vitro. Br J Dermatol 1986; 114: 91–101.

3. Regnier M, Asselineau D, Lenoir MC. Human epidermis reconstructed on dermal substrates in vitro: an alternative to animals in skin pharmacology. Skin Pharmacol 1990; 3: 70–85.

4. Lu H, Rollman O. Fluorescence imaging of reepithelialization from skin explant cultures on acellular dermis. Wound Repair Regen 2004; 12: 575–586.

5. Rikimaru K, Moles JP, Watt FM. Correlation between hyperproliferation and suprabasal integrin expression in human epidermis reconstituted in culture. Exp Dermatol 1997; 6: 214–221.

6. Bertrand R, Solary E, O’Connor P, Kohn KW, Pommier Y. Induction of a common pathway of apoptosis by staurosporine. Exp Cell Res 1994; 211: 314–321.

7. Johnson I. Fluorescent probes for living cells. Histochem J 1998; 30: 123–140.

8. Airola K, Johansson N, Kariniemi AL, Kahari VM, Saarialho-Kere UK. Human collagenase-3 is expressed in malignant squamous epithelium of the skin. J Invest Dermatol 1997; 109: 225–231.

9. Pyke C, Romer J, Kallunki P, Lund LR, Ralfkiaer E, Dano K, et al. The gamma 2 chain of kalinin/laminin 5 is preferentially expressed in invading malignant cells in human cancers. Am J Pathol 1994; 145: 782–791.

10. Impola U, Uitto VJ, Hietanen J, Hakkinen L, Zhang L, Larjava H, et al. Differential expression of matrilysin-1 (MMP-7), 92 kD gelatinase (MMP-9), and metalloelastase (MMP-12) in oral verrucous and squamous cell cancer. J Pathol 2004; 202: 14–22.

11. Pinheiro JC, Bates DM. Mixed-effects models in S and S-PLUS. New York: Springer, 2000.

12. Larjava H, Salo T, Haapasalmi K, Kramer RH, Heino J. Expression of integrins and basement membrane components by wound keratinocytes. J Clin Invest 1993; 92: 1425–1435.

13. Mirastschijski U, Bugdahl R, Rollman O, Johansson BR, Ågren MS. Epithelial regeneration from bioengineered skin explants in culture. Br J Dermatol 2006; 154: 42–49.

14. Chakrabarty KH, Heaton M, Dalley AJ, Dawson RA, Freedlander E, Khaw PT, et al. Keratinocyte-driven contraction of reconstructed human skin. Wound Repair Regen 2001; 9: 95–106.

15. Lee DY, Ahn HT, Cho KH. A new skin equivalent model: dermal substrate that combines de-epidermized dermis with fibroblast-populated collagen matrix. J Dermatol Sci 2000; 23: 132–137.

16. Regnier M, Prunieras M, Woodley D. Growth and differentiation of adult human epidermal cells on dermal substrates. Front Matrix Biol 1981; 9: 4–35.

17. Basset-Seguin N, Culard JF, Kerai C, Bernard F, Watrin A, Demaille J, et al. Reconstituted skin in culture: a simple method with optimal differentiation. Differentiation 1990; 44: 232–238.

18. Zhang K, Kramer RH. Laminin 5 deposition promotes keratinocyte motility. Exp Cell Res 1996; 227: 309–322.

19. Nishiyama T, Amano S, Tsunenaga M, Kadoya K, Takeda A, Adachi E, et al. The importance of laminin 5 in the dermal-epidermal basement membrane. J Dermatol Sci 2000; 24 (suppl 1): S51–59.

20. Mahrle G. Dithranol. Clin Dermatol 1997; 15: 723–737.

21. Trozak DJ. Topical corticosteroid therapy in psoriasis vulgaris. Cutis 1990; 46: 341–350.

22. van de Kerkhof PC. The topical treatment of psoriasis. Clin Exp Dermatol 2005; 30: 205–208.

23. Kragballe K. Vitamin D analogues in the treatment of psoriasis. J Cell Biochem 1992; 49: 46–52.

24. De Tran QH, Guay E, Chartier S, Tousignant J. Tacrolimus in dermatology. J Cutan Med Surg 2001; 5: 329–335.

25. Roeder A, Schaller M, Schafer-Korting M, Korting HC. Tazarotene: therapeutic strategies in the treatment of psoriasis, acne and photoaging. Skin Pharmacol Physiol 2004; 17: 111–118.

26. Pol A, Bergers M, Schalkwijk J. Comparison of antiproliferative effects of experimental and established antipsoriatic drugs on human keratinocytes, using a simple 96-well-plate assay. In Vitro Cell Dev Biol Anim 2003; 39: 36–42.

27. Wach F, Bosserhoff A, Kurzidym U, Nowok K, Landthaler M, Hein R. Effects of mometasone furoate on human keratinocytes and fibroblasts in vitro. Skin Pharmacol Appl Skin Physiol 1998; 11: 43–51.

28. Lee E, Jeon SH, Yi JY, Jin YJ, Son YS. Calcipotriol inhibits autocrine phosphorylation of EGF receptor in a calcium-dependent manner, a possible mechanism for its inhibition of cell proliferation and stimulation of cell differentiation. Biochem Biophys Res Commun 2001; 284: 419–425.

29. Karashima T, Hachisuka H, Sasai Y. FK506 and cyclosporin A inhibit growth factor-stimulated human keratinocyte proliferation by blocking cells in the G0/G1 phases of the cell cycle. J Dermatol Sci 1996; 12: 246–254.

30. Duvic M, Nagpal S, Asano AT, Chandraratna RA. Molecular mechanisms of tazarotene action in psoriasis. J Am Acad Dermatol 1997; 37: S18–24.

31. Traxler P. Tyrosine kinases as targets in cancer therapy – successes and failures. Expert Opin Ther Targets 2003; 7: 215–234.

32. Traxler P, Bold G, Buchdunger E, Caravatti G, Furet P, Manley P, et al. Tyrosine kinase inhibitors: from rational design to clinical trials. Med Res Rev 2001; 21: 499–512.

33. Vissers WH, Berends M, Muys L, van Erp PE, de Jong EM, van de Kerkhof PC. The effect of the combination of calcipotriol and betamethasone dipropionate versus both monotherapies on epidermal proliferation, keratinization and T-cell subsets in chronic plaque psoriasis. Exp Dermatol 2004; 13: 106–112.

34. Reichrath J, Muller SM, Kerber A, Baum HP, Bahmer FA. Biologic effects of topical calcipotriol (MC 903) treatment in psoriatic skin. J Am Acad Dermatol 1997; 36: 19–28.

35. Saarialho-Kere U, Kerkela E, Jahkola T, Suomela S, Keski-Oja J, Lohi J. Epilysin (MMP-28) expression is associated with cell proliferation during epithelial repair. J Invest Dermatol 2002; 119: 14–21.

36. Hudson LG, McCawley LJ. Contributions of the epidermal growth factor receptor to keratinocyte motility. Microsc Res Tech 1998; 43: 444–455.

37. Jost M, Kari C, Rodeck U. The EGF receptor – an essential regulator of multiple epidermal functions. Eur J Dermatol 2000; 10: 505–510.

38. Piepkorn M, Pittelkow MR, Cook PW. Autocrine regulation of keratinocytes: the emerging role of heparin-binding, epidermal growth factor-related growth factors. J Invest Dermatol 1998; 111: 715–721.

39. Nanney LB, Stoscheck CM, King LE Jr, Underwood RA, Holbrook KA. Immunolocalization of epidermal growth factor receptors in normal developing human skin. J Invest Dermatol 1990; 94: 742–748.

40. Maubec E, Duvillard P, Velasco V, Crickx B, Avril MF. Immunohistochemical analysis of EGFR and HER-2 in patients with metastatic squamous cell carcinoma of the skin. Anticancer Res 2005; 25: 1205–1210.

41. Krahn G, Leiter U, Kaskel P, Udart M, Utikal J, Bezold G, et al. Coexpression patterns of EGFR, HER2, HER3 and HER4 in non-melanoma skin cancer. Eur J Cancer 2001; 37: 251–259.

42. Nanney LB, Stoscheck CM, Magid M, King LE Jr. Altered [125I]epidermal growth factor binding and receptor distribution in psoriasis. J Invest Dermatol 1986; 86: 260–265.

43. Bhagavathula N, Nerusu KC, Fisher GJ, Liu G, Thakur AB, Gemmell L, et al. Amphiregulin and epidermal hyperplasia: amphiregulin is required to maintain the psoriatic phenotype of human skin grafts on severe combined immunodeficient mice. Am J Pathol 2005; 166: 1009–1016.

44. Varani J, Kang S, Stoll S, Elder JT. Human psoriatic skin in organ culture: comparison with normal skin exposed to exogenous growth factors and effects of an antibody to the EGF receptor. Pathobiology 1998; 66: 253–259.

45. Powell TJ, Ben-Bassat H, Klein BY, Chen H, Shenoy N, McCollough J, et al. Growth inhibition of psoriatic keratinocytes by quinazoline tyrosine kinase inhibitors. Br J Dermatol 1999; 141: 802–810.

46. Baselga J. Why the epidermal growth factor receptor? The rationale for cancer therapy. Oncologist 2002; 7 (suppl 4): 2–8.

47. Traxler P, Allegrini PR, Brandt R, Brueggen J, Cozens R, Fabbro D, et al. AEE788: a dual family epidermal growth factor receptor/ErbB2 and vascular endothelial growth factor receptor tyrosine kinase inhibitor with antitumor and antiangiogenic activity. Cancer Res 2004; 64: 4931–4941.

48. Peus D, Hamacher L, Pittelkow MR. EGF-receptor tyrosine kinase inhibition induces keratinocyte growth arrest and terminal differentiation. J Invest Dermatol 1997; 109: 751–756.

49. Tavakkol A, Varani J, Elder JT, Zouboulis CC. Maintenance of human skin in organ culture: role for insulin-like growth factor-1 receptor and epidermal growth factor receptor. Arch Dermatol Res 1999; 291: 643–651.

50. Varani J, Lateef H, Fay K, Elder JT. Antagonism of epidermal growth factor receptor tyrosine kinase ameliorates the psoriatic phenotype in organ-cultured skin. Skin Pharmacol Physiol 2005; 18: 123–131.
